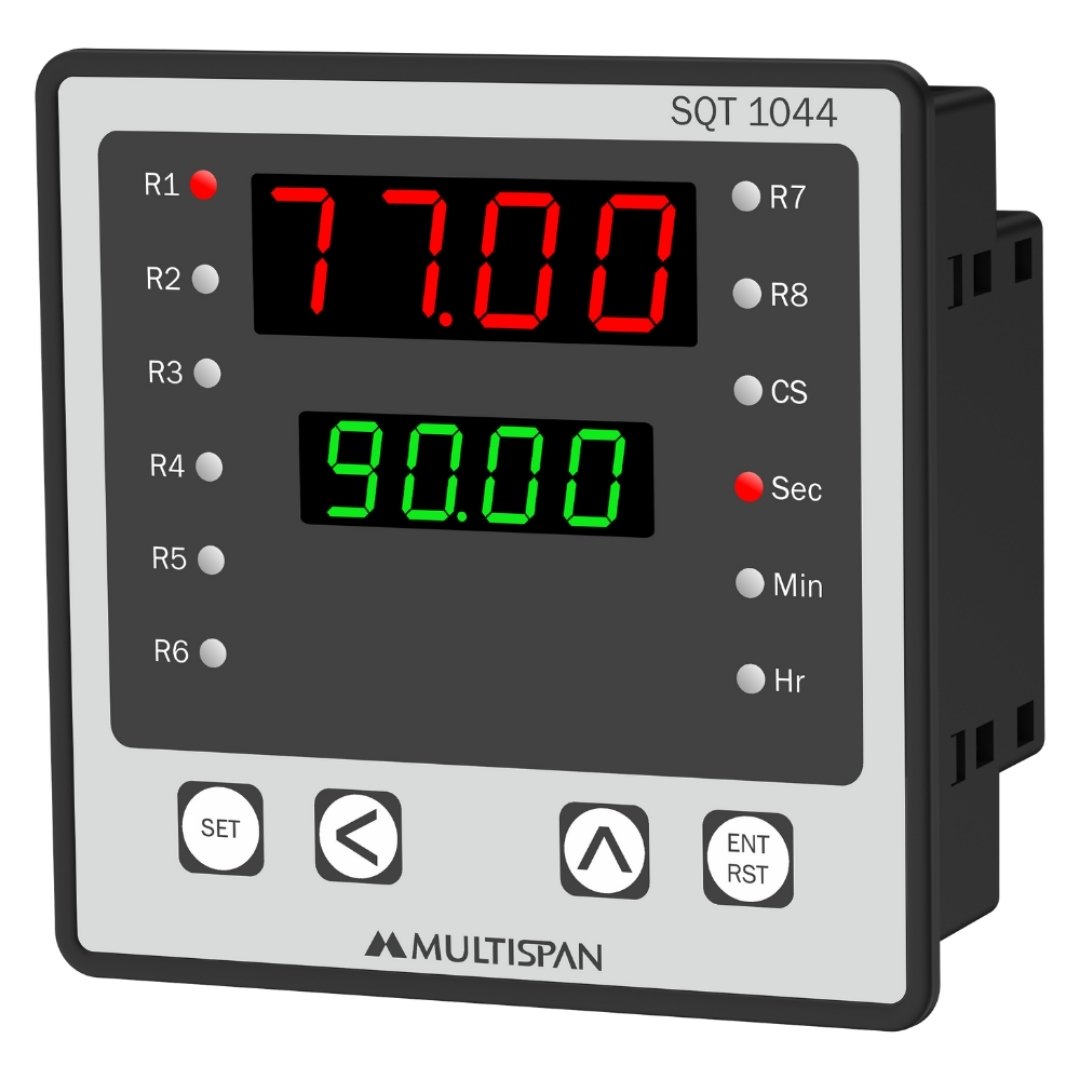

4/8/12 Channel Sequential Timer
0৳
| INPUT SPECIFICATION | |
| Input | Trigger |
| Enable | |
| Power ON | |
| DISPLAY AND KEYS | |
| Display | Upper: 4-Digit, 7-Segment, 0.56” |
| Lower: 4-Digit, 7-Segment, 0.40” | |
| Keys | SET, SHIFT, INC, ENT/RST |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Range | |
| Range | 99.99 Sec |
| 999.9 Sec | |
| 99.59 Min | |
| 99.59 Hrs | |
| 999.9 Hrs | |
| Timer Mode: | |
| Timer Mode | Delayed ON |
| Delayed OFF | |
| Cycle Timer | |
| OUTPUT SPECIFICATION: | |
| Relay Output | |
| Relay | 8 Relay + Cascade |
| LED Indication | 1. Relay Status |
| 2. Time Unit | |
| Rating | 5A, 230V AC |
| AUXILIARY SUPPLY: | |
| Supply voltage | 100 to 270V AC, 50-60Hz |
| Power consumption (VA RATING) | Approx 5 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
