Main function

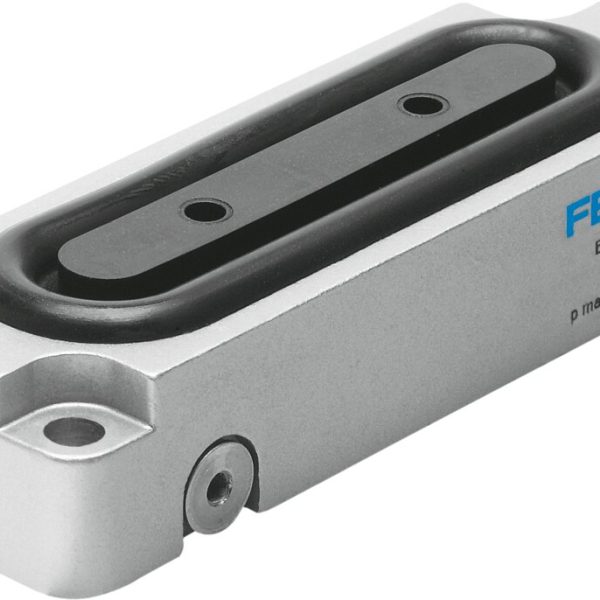

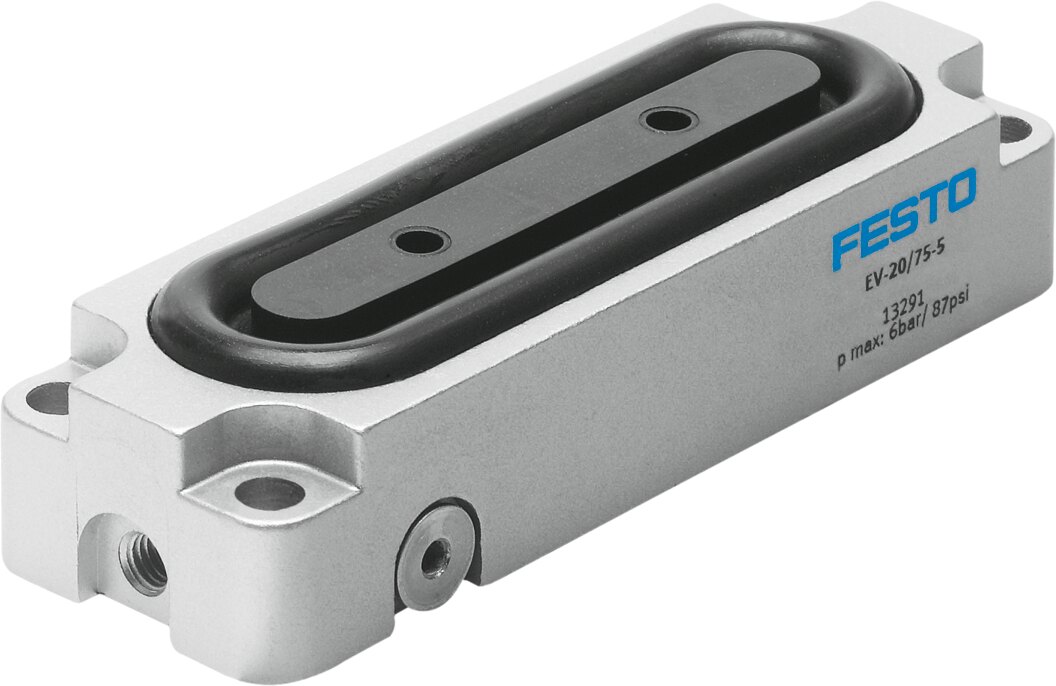

Pneumatic clamp
Product series / family name
Cylinders – Flat-pak pneumatic clamp
Stroke length
4mm stroke (S4mm)
Functions
Flat-pak pneumatic clamping module
Design
Cu-free
P.T.F.E.-free
Single-acting
Compressed air as per ISO8573-1;2010 [7;-;-]
Pressure
+2…+6bar (operating pressure)
Connection type
M4 female threaded connector
M5 threaded pneumatic port
Mounting mode
through-hole mount
Dimensions
15x63mm clamping plate
Material
Die-cast Aluminium housing
Thermoplastic polyurethane diaphragm
Ambient air temperature for operation
-20°C…+40 °C
Order code / Manufacturer SKU
13290
Manufacturer product status
Commercialized
Benefits
Compact rodless cylinder with diaphragm
Single-acting with reset function
Flat design
Hermetically sealed
Pressure plates and foot mounting as accessories
