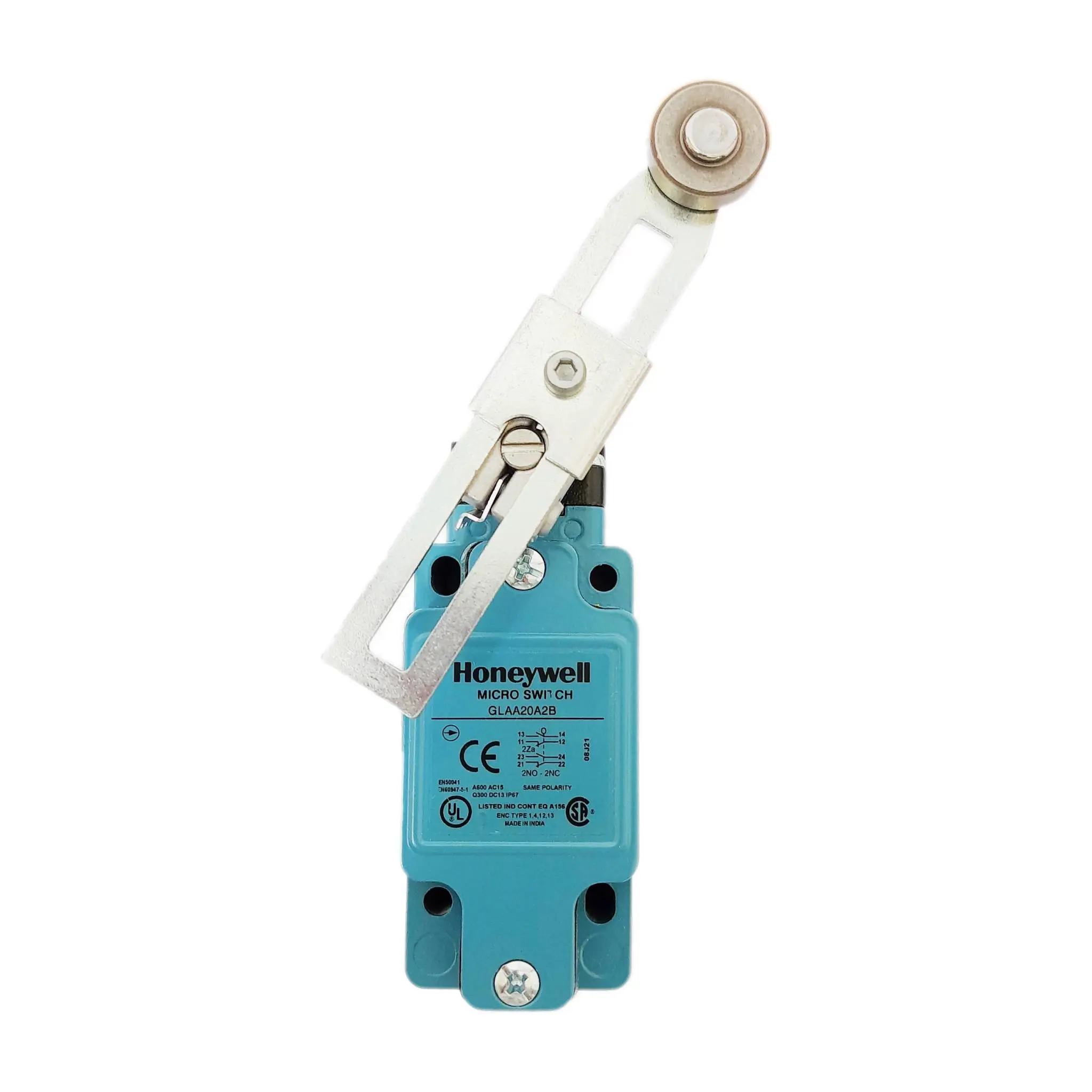

| Product | Description |
|---|---|
| Brand | Honeywell |
| Model | GLAA20A2B |
| Certifications | CE, CCC1, CSA, UL |
| Housing material | Electrostatic epoxy coated zinc |
| Contact material | Silver alloy (standard), gold-plated (low-energy applications) |
| Rated operational voltage (Ue) | 240 Vac, 600 Vac, 250 Vdc |
| Rated operational current (Ie) | 3 A, 1.2 A, 0.27 A |
| Thermal current (Ith) | 10 A, 2.5 A |
| Rated insulation voltage (Ui) | 300 V; 600 V |
| Pollution degree | 3 |
| Sealing | IP67; NEMA/UL 1, 4, 12, and 13 |
| Operating temperature | -40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator -25 °C to 85 °C [-13 °F to 185 °F] other actuators |
| Mechanical life | Up to 15 million operations |
| Vibration | 10 g conforming to IEC 68-2-6; railway application per IEC 61373 Class I Car B type |
| Shock | 50 g conforming to IEC 68-2-27; railway application per IEC 61373 Class I Car B type |
| Body Style | Non plug-in |
| Conduit | 0.5-14 NPT |
| Basic Switch | 2NC/2NO, DPDT snap action |
| Head | Side rotary |
| Lever | 38 to 93 mm adjustable, 19 x 6 steel roller |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
