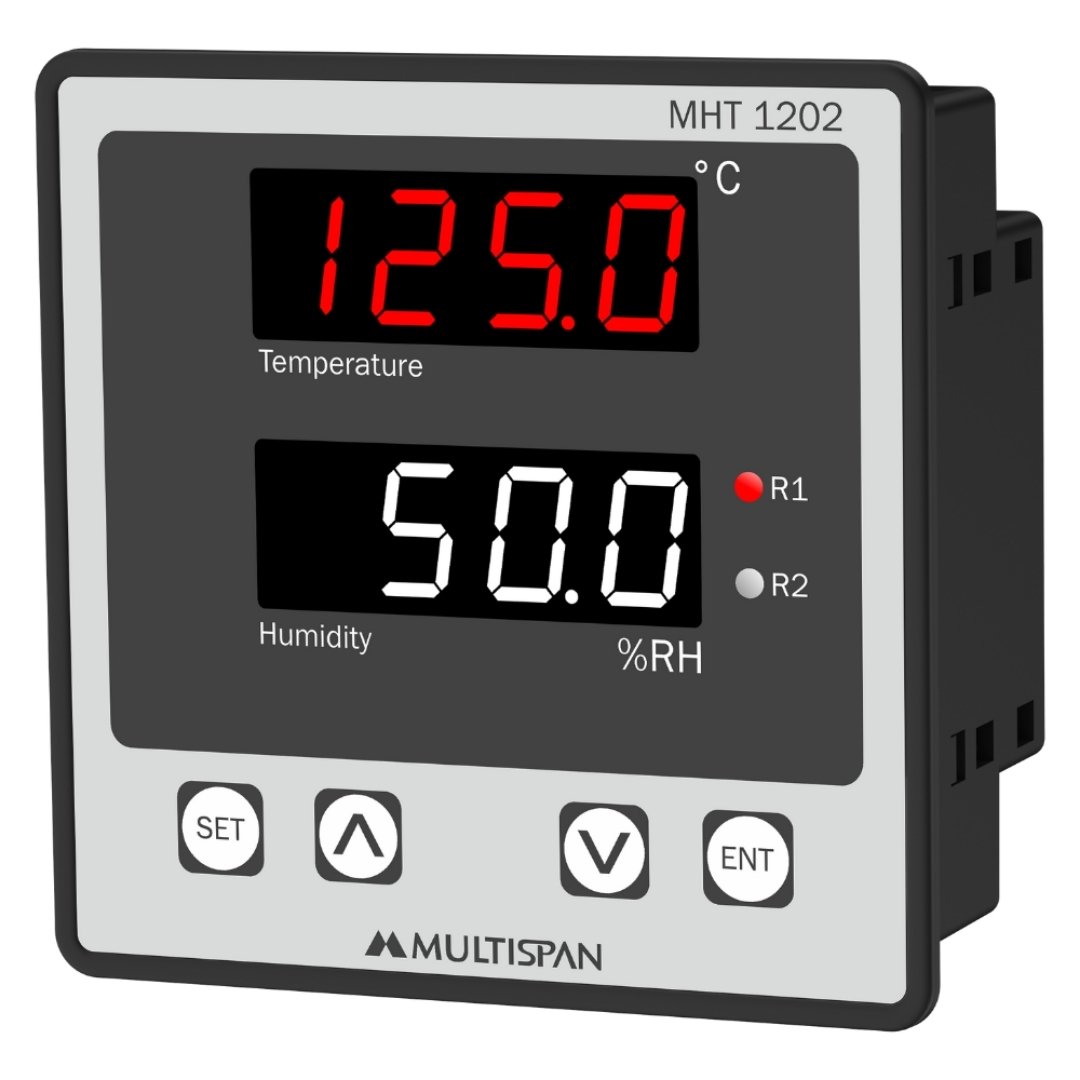

Humidity + Temperature Controller
0৳
| Parameter | Specification |
|---|---|
| Micro Controller | Based, Double Display |
| Display | Upper Display, 7-Seg, Red 0.56” LED for Process Value-1 Lower Display, 7-Seg, White 0.56” LED for Process Value-2 |
| Dimension | Size (mm): 96(H) X 96(W) X 54(D) Panel Cutout (mm): 92 (H) X 92 (W) |
| Input | PT-100/3W & Humidity Sensor(RH-100) |
| Range | PT-100 (0.0°C to 400.0°C) Humidity (0.0 TO 100.0% RH) |
| Supply | 100 To 270V AC, 50/60 Hz, Approx 4VA |
| Output | 2-Relay 1C/O (On-Off) |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529:2001 |
