Display	Bright LED display with parameters integrated within display
Digits	4 digit 7 segment
Electrical Connection	1Ø – 2W
Rated Input Voltage	20 – 300V AC (L – N), 34 – 519V AC (L – L)
Rated Input Current	Nominal 5A AC (Min- 40mA, Max- 6A)
Resolution	Voltage, Current & Power : Auto , Power factor : 0.001
Accuracy	Voltage & Current : ±0.5% of Full scale, Frequency ± 1%, Active power ± 1%, Reactive power ± 2%
CT Primary	5A – 9999A (Programmable for any value)
CT Secondary	5A fixed
PT Primary	100V to 500kV (Programmable for any value)
PT Secondary	100V to 500V AC (Programmable for any value)
Communication	RS485 MODBUS RTU protocol
Measuring Parameters	Voltage, Current, Power factor, Frequency, Power (Active, Reactive Apparent) (kW, W)
Supply Voltage	85 to 300V AC / DC

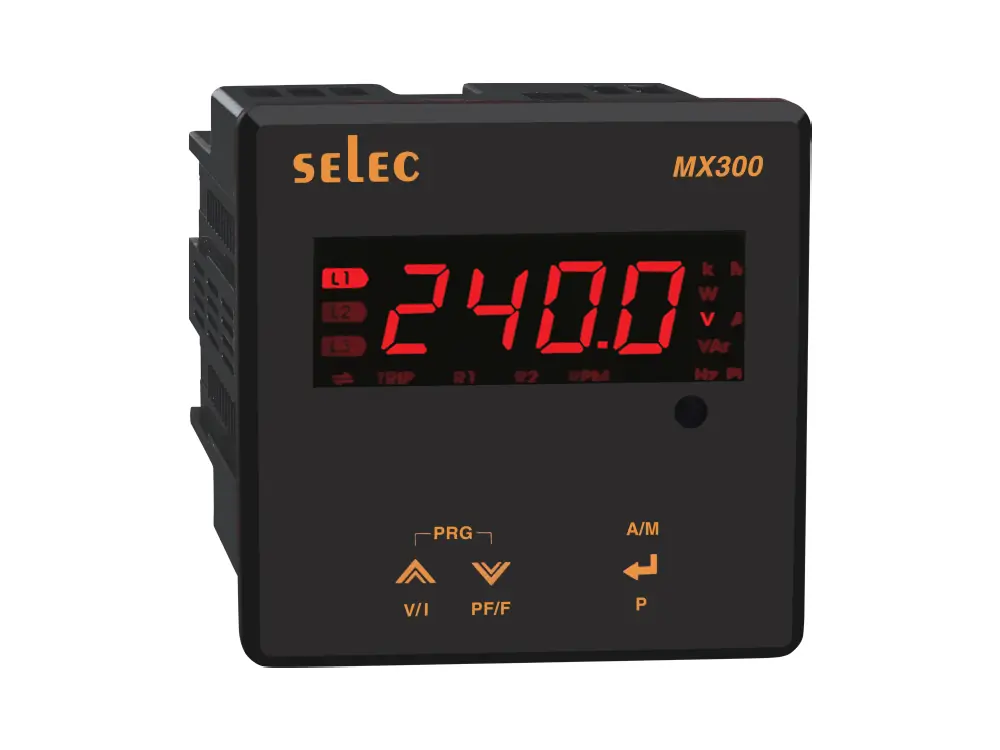

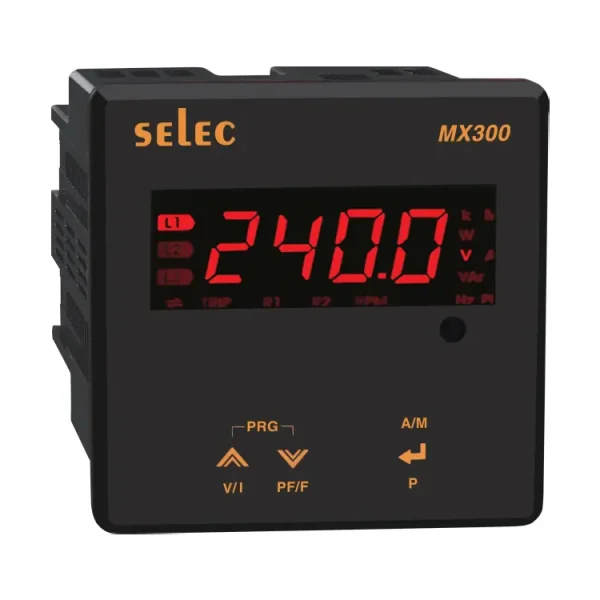

LED multifunction meter, 1Ø, 96X96mm

Brief Specifications
