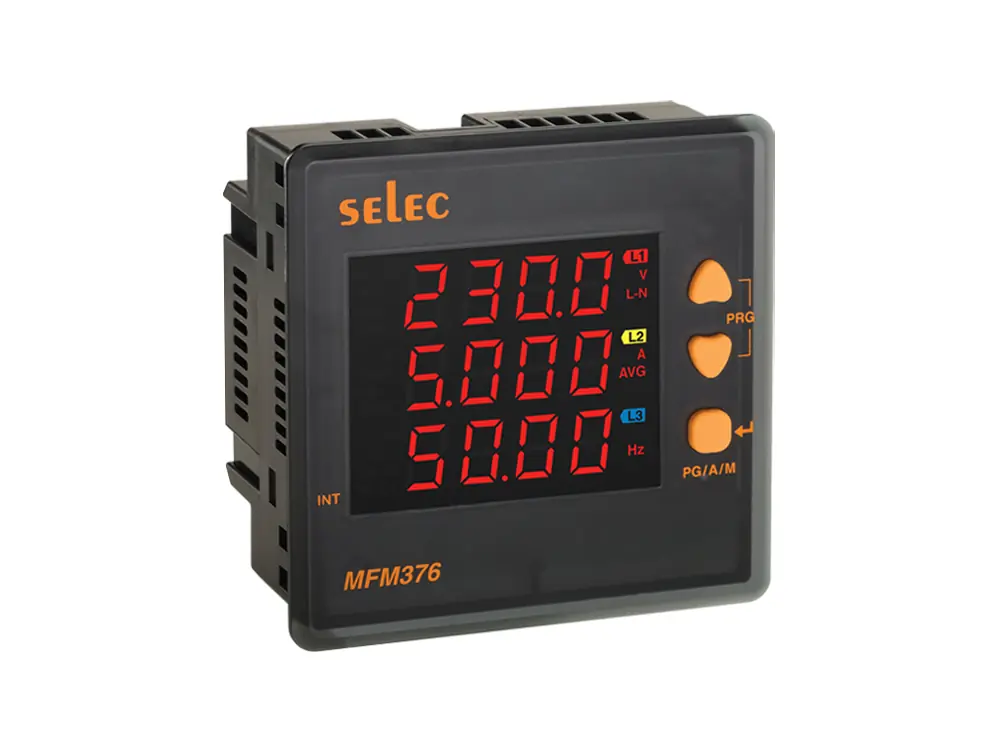

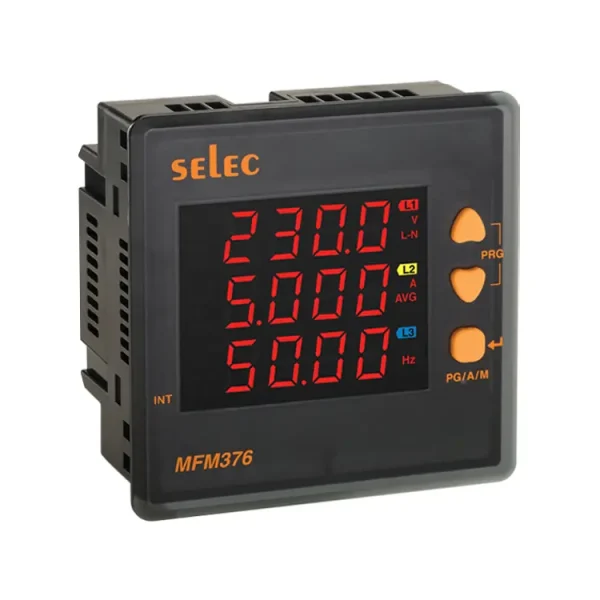

LED Multifunction Meter
0৳
Brief Specifications
| Display Type | 7 Segment LED Display |
| Display Configuration | 3 Rows of 4 Digits |
| Electrical Connection | 3Ø – 3W, 3Ø – 4W, 2Ø – 3W, 1Ø – 2W |
| Type of Output | Pulse Output |
| Features | Phase Angle Detection, (Max/Min) Demand Power, Run Hour, Auxiliary Interrupts |
| CT Primary | 1 / 5A to 10kA (Programmable for Any Value) |
| CT Secondary | 1 / 5 A (Programmable) |
| PT Primary | 100V to 500kV (Programmable for Any Value) |
| PT Secondary | 100V to 500V (Programmable for Any Value) |
| Rated Input Current | Nominal 5A AC (Min – 14mA Max – 6A) |
| Supply Voltage | 240V AC (-15% to +12%) (MFM376-230VAC) ,85V to 270V AC & 40V to 270V DC (MFM376-C-CE) |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
