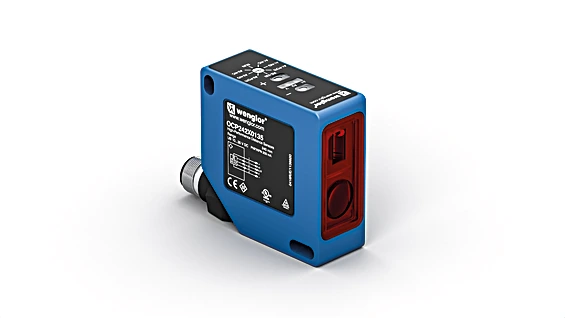

OCP662X0135 Laser Distance Sensor Triangulation
0৳
Optical Data |
|
|---|---|
| Range | 660Â mm |
| Setting Range | 60Â …Â 660Â mm |
| Switching Hysteresis | Â <Â 1Â % |
| Light Source | Laser, red |
| Wavelength | 655Â nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 1 |
| Max. Ambient Light | 10,000Â Lux |
| Light Spot Diameter | see table 1 |
Electrical Data |
|
|---|---|
| Supply Voltage | 10Â …Â 30Â V DC |
| Current Consumption (Ub = 24 V) | <Â 50Â mA |
| Switching Frequency | 100Â Hz |
| Response Time | Â <Â 5Â ms |
| On-/Off-Delay (RS-232) | 0Â …Â 1Â s |
| Temperature Drift | < 50 µm/K |
| Temperature Range | -25 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | <Â 1.5Â V |
| Switching Output/Switching Current | 200Â mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Teach Mode | HT, VT, FT, TP |
| Transmission rate | 9,600Â Bd |
| Protection Class | III |
| FDA Accession Number | 1120728-000 |
Mechanical Data |
|
|---|---|
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS Plastic, PC |
| Degree of Protection | IP67 |
| Connection Type | Plug variant |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 43Â g |
Safety-relevant Data |
|
|---|---|
| MTTFd (EN ISO 13849-1) | 918.59Â a |
General Data |
|
|---|---|
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output |
|
|---|---|
| Error Output | yes |
| PNP NO | yes |
| RS-232 with Adapterbox | yes |
| External teach-in input | yes |
Adjustable parameters |
|
|---|---|
| Output | Error Output Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| Other parameters | Exposure time Laser light Switching hysteresis Teach-in mode Off-delay On-delay |
| All other parameters can be found in the product documentation. |
