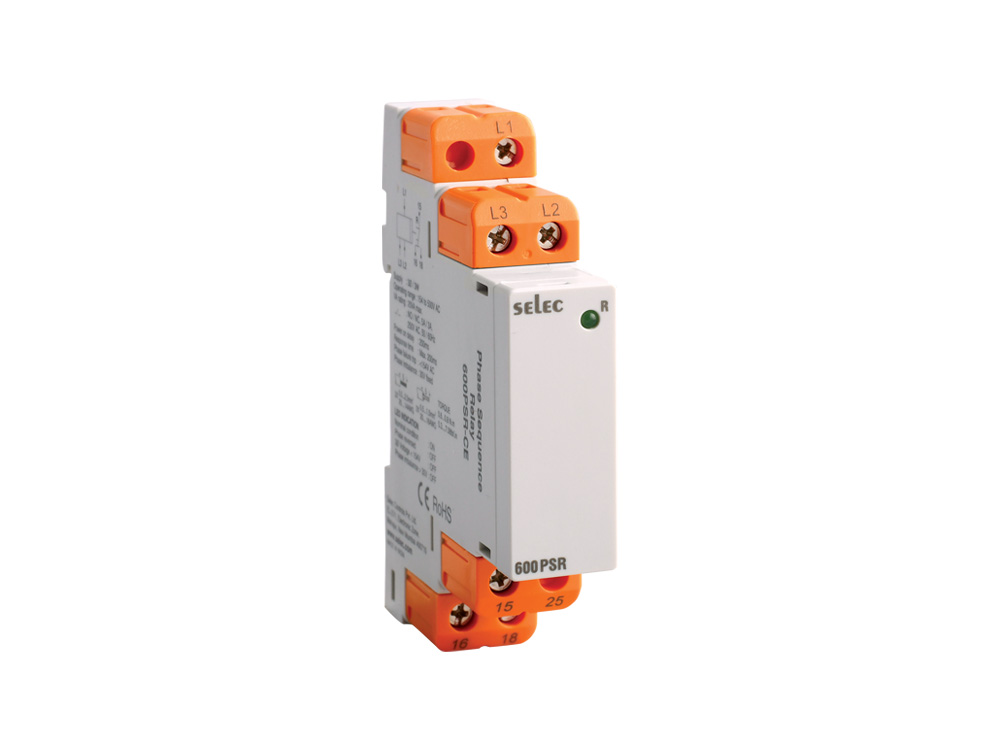

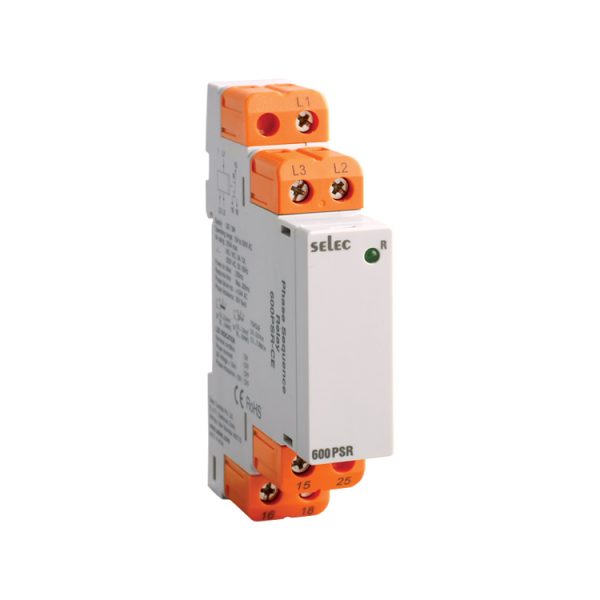

Phase sequence Relay, Din Rail
0৳
Brief Specifications
| Measuring Parameter | Phase Sequence, Phase Failure, Phase Asymmetry |
| Electrical Connection | 3P – 3W |
| Time Ranges | Power On Delay: 200msec |
| Accuracy | Trip Accuracy : ± 10V |
| Output Contact | 1 C/O ( SPDT ) |
| Output Rating | NC: 3A @ 250V AC , NO: 5A @ 250V AC |
| Operating Voltage | 154 To 500V AC (L – L) |
| Size | 17.5mm |
| Mounting Type | DIN Rail Mount |
| Certification | CE |
