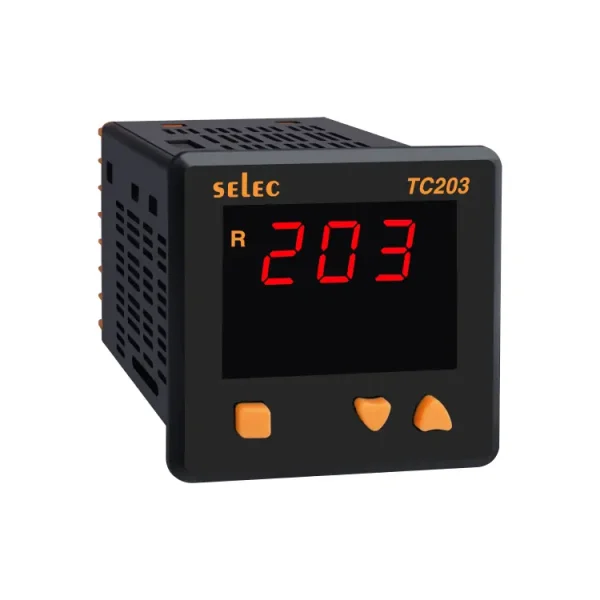

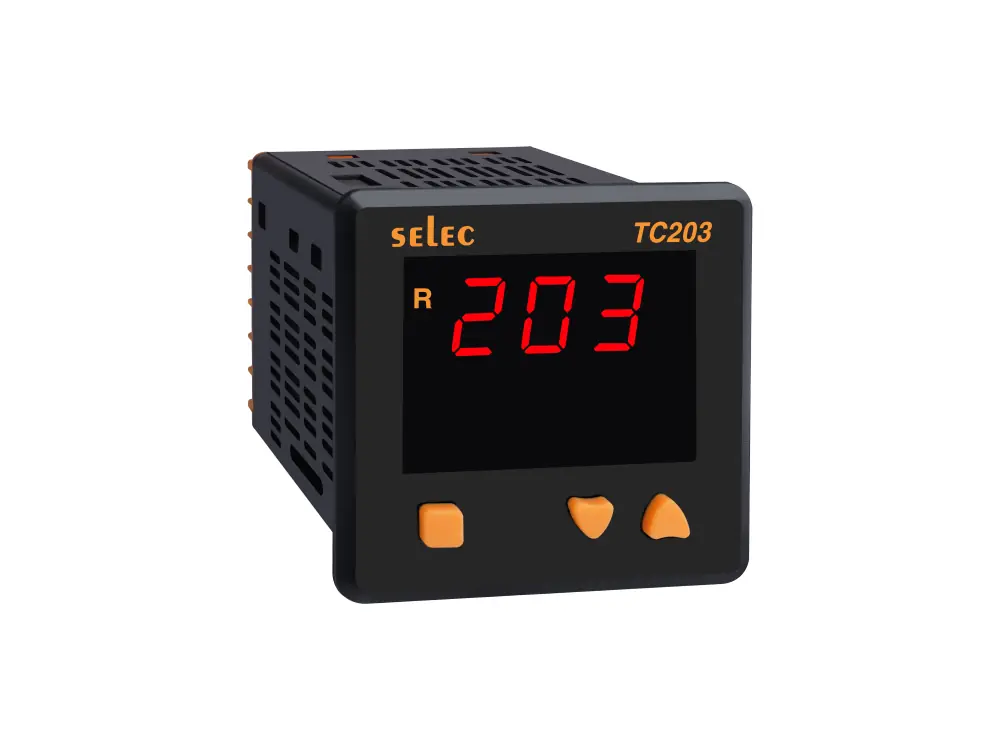

Single Display, Relay / SSR output 72X72 mm
0৳
Brief Specifications
| Display Type | 7 Segment LED, Single Display |
| Display Configuration | 3 Digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Resolution | Fixed 1° |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °: For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
| Control Output | RELAY or SSR. |
| Control mode | Auto Tune PID / ON-OFF |
| Supply Voltage | 90 to 270V AC/DC |
| Size | 72 x 72mm |
| Mounting Type | Panel Mount |
