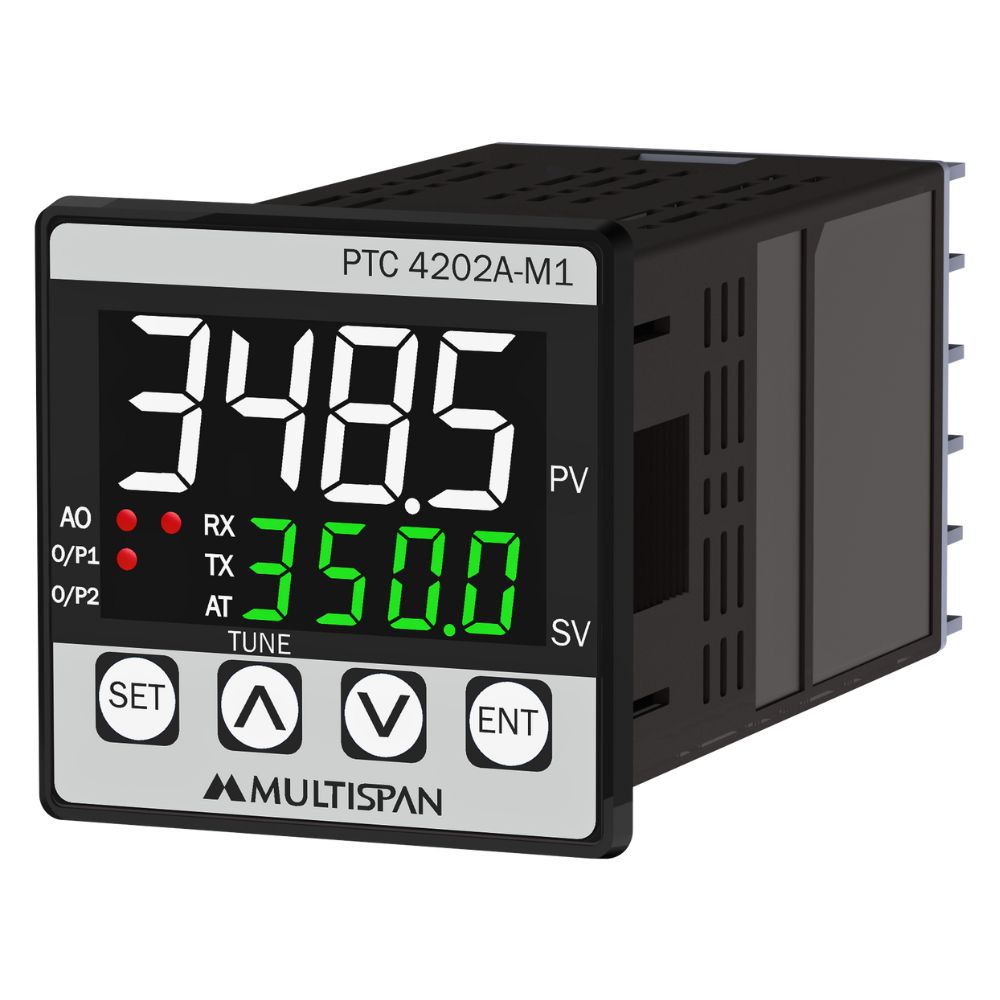

Universal Input PID Controller with Analog Output
0৳
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C | |
| K | 0 to 1200°C | |
| PT-100 | -99 to 400°C | |
| PT.1 | -99.9 to 400.0°C | |
| 0-10V DC | -999 to 9999 | |
| 0-20mA DC | -999 to 9999 | |
| 4-20mA DC | -999 to 9999 | |
| Resolution | J,K,PT-100 = 1°C | |
| PT.1 = 0.1°C | ||
| 0-10V DC,0-20mA DC,4-20mA DC | ||
| = 0.1,0.01,0.001,0001 | ||
| Indication Accuracy | ±1% of FSD ± 1°C | |
| (FSD : full scale deflection) | ||
| DISPLAY AND KEYS: | ||
| Display | Upper: 4 digit, 7 segment, 0.39” | |
| Lower: 4 digit, 7 segment, 0.28” | ||
| Keys | SET, INC, DEC, ENT | |
| DIMENSION: | ||
| Size (mm) | 48 (H) x 48 (W) x 95 (D) mm | |
| Panel Cutout (mm) | 45 (H) x 45 (W) mm | |
| CONTROL METHOD: | ||
| Heating | 1. PID Control with Auto-Tuning | |
| 2. ON-OFF Control | ||
| Cooling | 1. BL.TP (Blower Time Proportion) | |
| 2. ON-OFF Control | ||
| OUTPUT SPECIFICATION | ||
| Relay Output | ||
| Relay | 2 nos. | |
| Relay Type | (NO-C) | |
| Rating | 5A, 230V AC/30V DC | |
| Analog Output | ||
| 4 to 20mA DC | ||
| Transmitter supply | ||
| 24V DC | ||
| Modbus Communication | ||
| RS-485 | ||
| AUXILIARY SUPPLY | ||
| Supply voltage | 100 to 270V AC, 50-60Hz | |
| Power consumption (VA RATING) | Approx 7 VA @ 230V AC MAX | |
| ENVIRONMENT CONDITION | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
