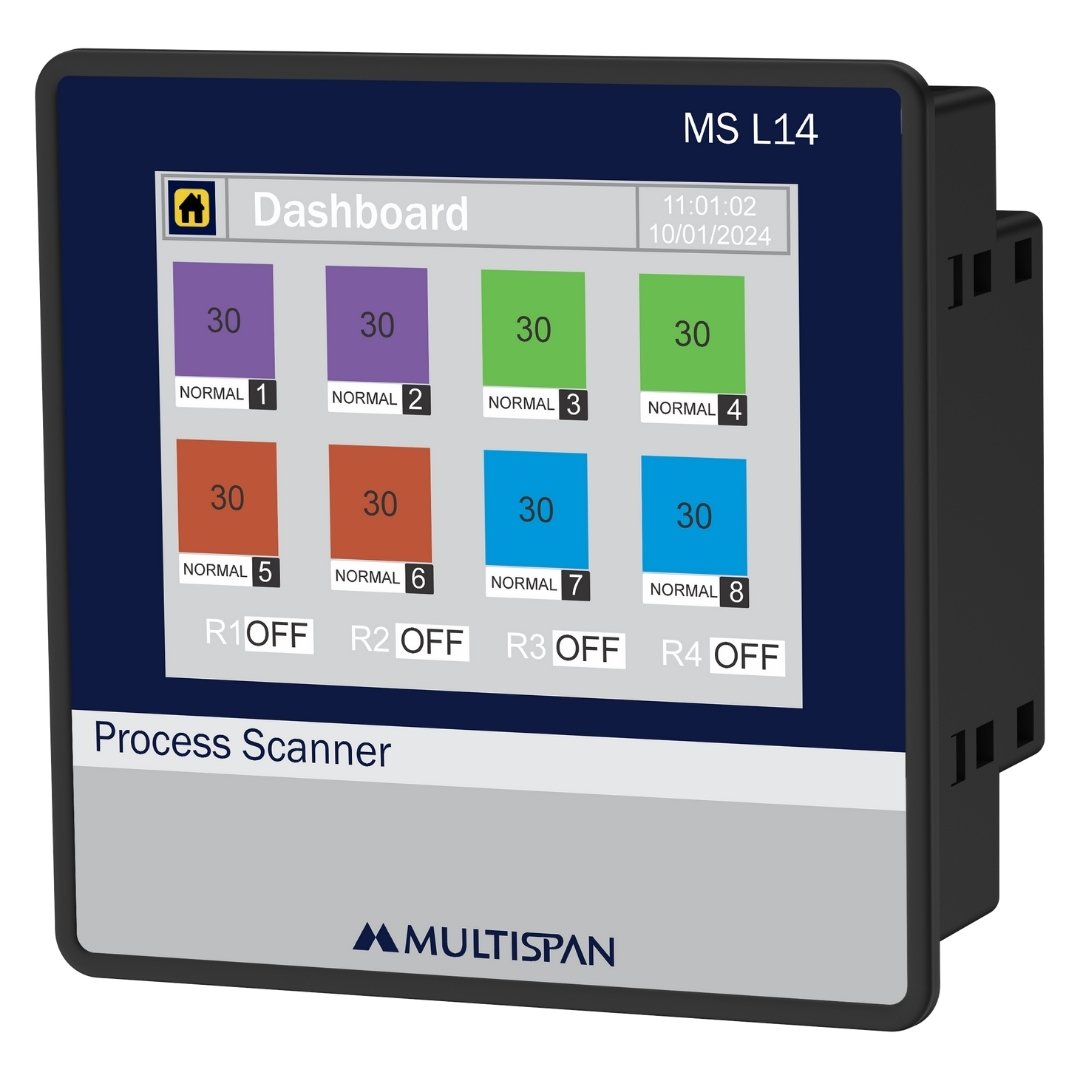

8-channel Process Scanner
0৳
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C, | |
| K | 0 to 1200°C | |
| PT-100 | -99 to 400°C, | |
| PT.1 | -99.9 to 400.0°C | |
| 0 – 10V DC 0 – 20mA DC 4 – 20mA DC |
-999 To 9999 | |
| DISPLAY: | ||
| Display | 320 x 240 px Resistive Touch screen Display |
|
| DIMENSION: | ||
| Size (mm) | 96 (H) x 96 (W) x 70 (D) mm | |
| Panel Cutout (mm) | 92 (H) x 92 (W) mm | |
| OUTPUT SPECIFICATION: | ||
| Relay Output | ||
| Relay | 4 nos. | |
| Relay Type | 1 C/O , (NO-C-NC) | |
| Rating | 5A, 230V AC / 28 V DC | |
| AUXILIARY SUPPLY: | ||
| Supply voltage | 20V To 36V DC | |
| Power consumption (VA RATING) |
Approx 5 VA | |
| COMMUNICATION : | ||
| RS – 485 MODBUS | ||
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
