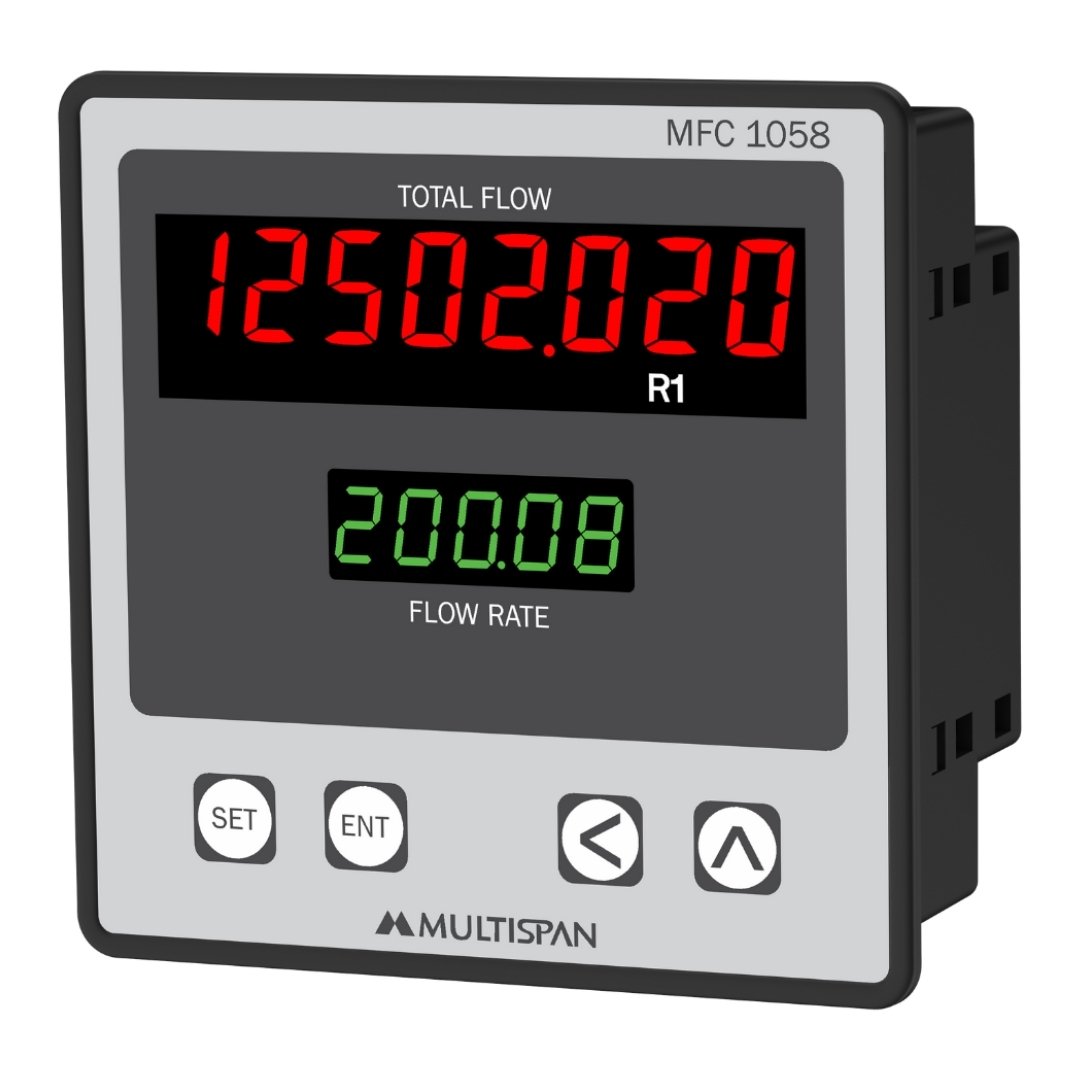

Flow Totalizer
0৳
| INPUT SPECIFICATION: | ||||
| Input | Current : 4 TO 20mA DC | |||
| Resolution | Decimal Point Selectable: 00000/0.0000/00.000/000.00/0000.0 (For Flow rate) & Total Flow |
|||
| Range Limits | 0 to 99999999 For Total Flow 0 to 99999 For Flow Rate |
|||
| DISPLAY AND KEYS: | ||||
| Display | Upper: 8-Digit, 7-Seg, 0.5” Red (For Total Flow) Lower: 5-Digit, 7-Seg, 0.4” Green |
|||
| Keys | SET, ENT , SHIFT , UP | |||
| DIMENSION: | ||||
| Size (mm) | 96 (H) x 96 (W) x 54 (D) | |||
| Panel Cutout (mm) | 92 (H) x 92 (W) | |||
| GENERAL SPECIFICATION: | ||||
| Memory | Non Volatile | |||
| Reset Option | Front Panel Reset & Back Terminal Reset | |||
| OUTPUT SPECIFICATION: | ||||
| Relay Output | ||||
| Relay | 2 nos. | |||
| Relay Type | 1 C/O (NO-C-NC) | |||
| Rating | 5A, 230V AC | |||
| Modbus Output | ||||
| RS-485 Modbus Communication | ||||
| Transmitter Supply | ||||
| 24V DC | ||||
| Retransmission | ||||
| 4 to 20mA DC | ||||
| AUXILIARY SUPPLY: | ||||
| Supply voltage | 100 to 270V AC, 50-60Hz | |||
| Power consumption (VA RATING) | Approx 6VA @ 230V AC MAX | |||
| ENVIRONMENT CONDITION: | ||||
| Operating Temp. | 0°C to 55°C | |||
| Relative Humidity | Upto 95% RH (non-condensing) |
|||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |||
