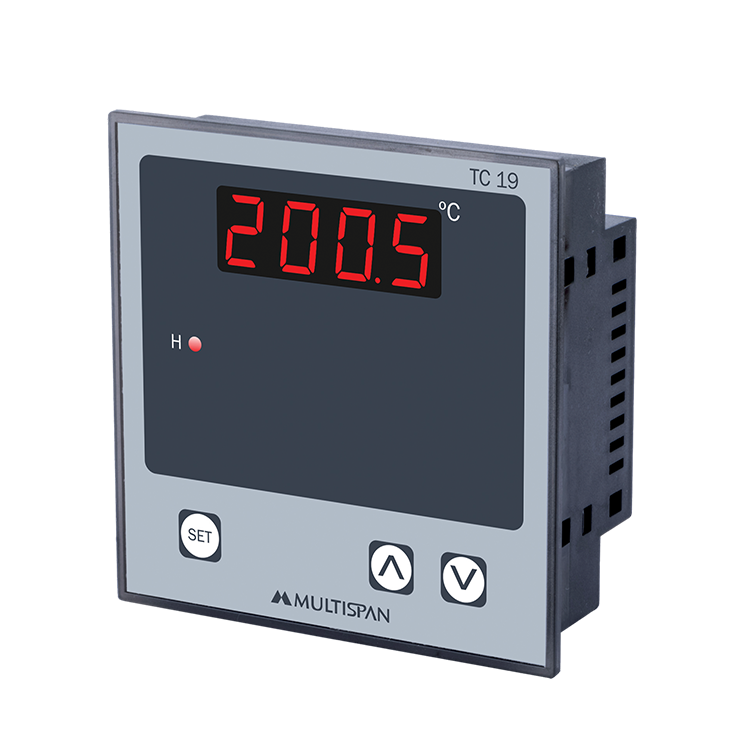

Multispan TC-19 Temperature Controller

– Model: TC- 19
– Dimensions: 96x96x42
– Panel Cutout: 92×92
– Sensor: J/K/PT-100 2W/3W (Configurable)
– Range: J (0-600 C), K(0-1200 C), PT 100 2W/3W (0 to 400, -50 to 200 C)
– Output: 1 Relay 1C/O, 5A, 230V AV
– Control Action: Time Proportional ON- OFF (factory Set)
– Accuracy: 1% of FSD
– Supply: 100-250 AC, 50/60 Hz

N/A

A controller in a temperature control system will accept a temperature sensor such as a thermocouple or RTD as input and compare the actual temperature to the desired control temperature, or setpoint. It will then provide an output to a control element.
