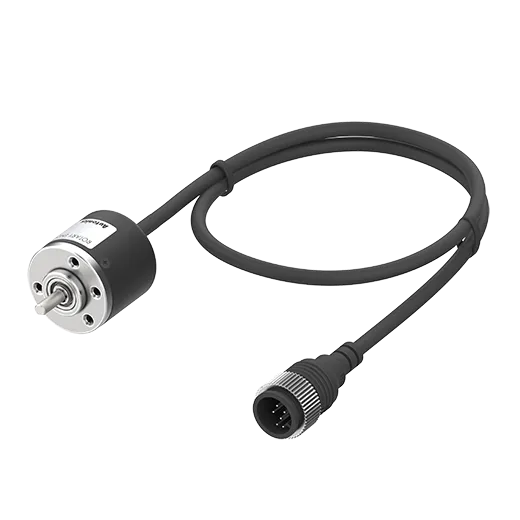

E30S4-1000-3-V-24-C
0৳
Data sheet Print
| Shaft outer diameter | Ø4mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 20gf.cm(max. 0.00196N.m) |
| Resolution | 1000P/R |
| Output phase | A, B, Z |
| Control output | Voltage |
| Power voltage | 12-24VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø4mm coupling |
| Weight | Approx. 80g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
