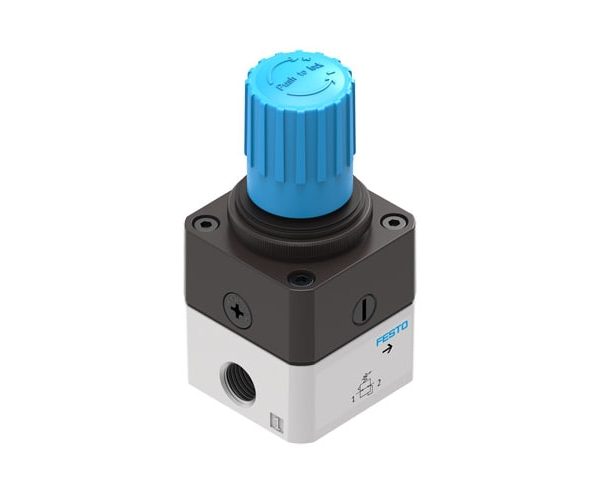

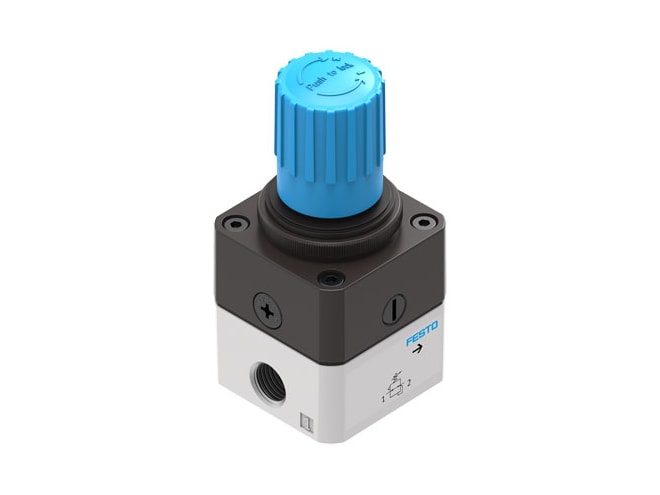

Festo 162834 / LRP-1/4-2,5 Precision Pressure Regulator

Features

• Rotary knob with detent actuator lock
• Optional mounting position
• Piloted precision diaphragm control valve design
• Output pressure constant controller function
• With secondary venting controller function
• 991540 symbol
• Prepared for G1/8 pressure gauge (ANALOG) or pressure display (DIGITAL)
• 0.1MPA operating pressure
• 1.2MPA operating pressure
• 1BAR operating pressure
• 12BAR operating pressure
• 0.02BAR max. pressure hysteresis
• 1800L2 standard nominal flow rate
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Inert gases operating medium
• Lubricated operation not possible note on operating and pilot medium
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• -10GC media temperature
• 60GC media temperature
• 310G product weight
• Front panel mounting type of mounting
• In-line installation type of mounting
• With accessories type of mounting
• RoHS-compliant note on materials
• NBR material seals
• Aluminium material housing
• 1BAR to 12BAR inlet pressure 1
• 0.05BAR to 2.5BAR pressure regulation range
• -10GC ambient temperature to 60GC ambient temperature
• Pneumatic connection g1/4 , port 1
• Pneumatic connection g1/4 , port 2
