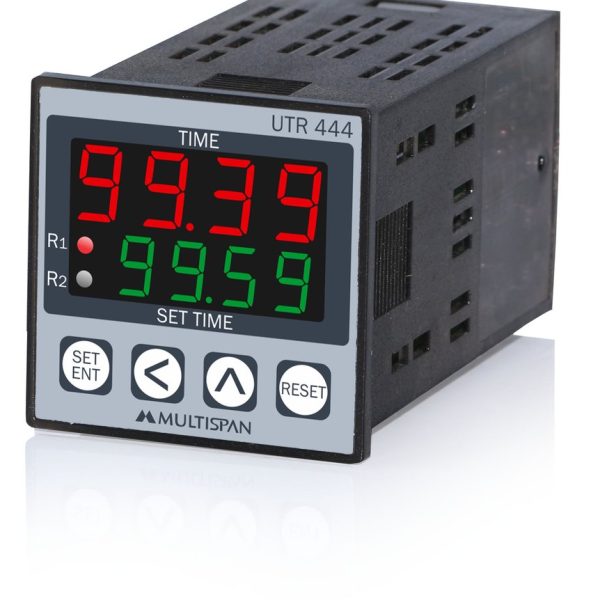

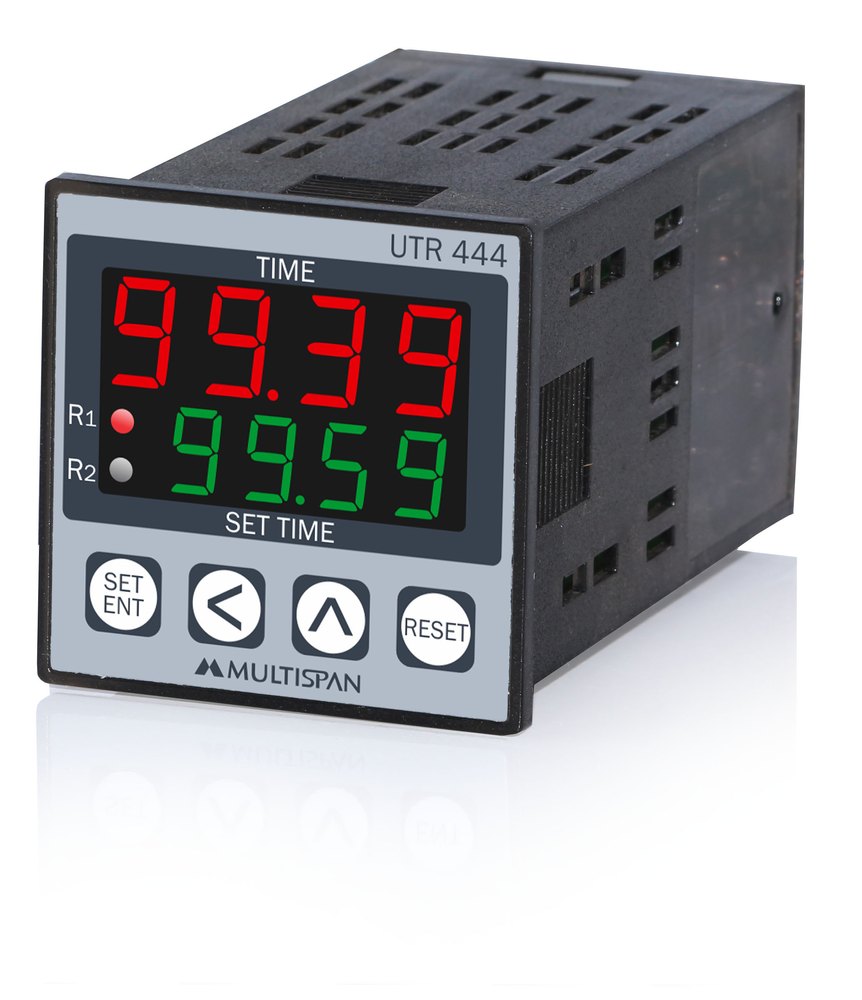

Multispan Friendly Digital Timer – UTR-444, For Industrial, 4 Digit
0৳
| Display Type | Digital |
| Mounting Type | Panel Mounted |
| Features | Digital |
| Indicator | LED |
| Usage/Application | Industrial |
| Accuracy | High |
| Operating Voltage | Normal |
| Automation Grade | Automatic |
| Warranty | 1 Year |
| Memory Retention | Yes |
| Display Digit | 4 Digit |
| Phase | Single Phase |
| Brand | Multispan |
| Design | Friendly |
| Technical Specification : | Multifunction Dual Display |
| Time Setting | Front Keypad |
| Operating Modes | ON delay / Interval Delay Cyclic ON, Cyclic OFF |
| Display | 7 Segment 4 Digit |
| Set Point | 1 |
| Time Range | 9.99/99.9/999 min/sec/hr. Selectable |
| LED Indication | Relay ON |
| Counting Direction Start Input |
Up & Down Selectable Pulse, Gate |
| Memory | Yes |
| Output Contacts | 2 C/O ( DPDT ) |
| Rating | 5A 230 VAC |
| Reset | Front, Remote, Power Interruption |
| Supply Voltage | 90-270 VAC, 50-60 Hz, SMPS |
| Size | 48 X 48 X 95 mm |
