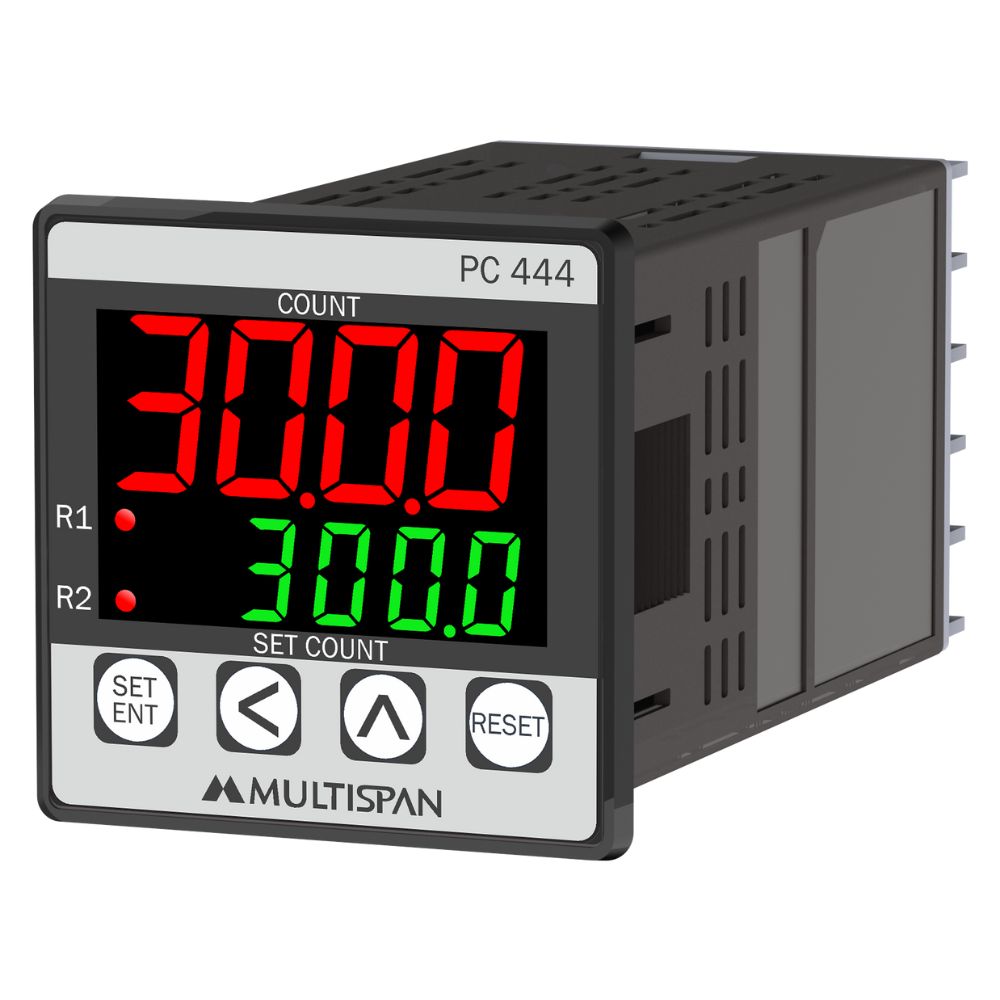

Programmable counter
0৳
| Parameter | Specification |
|---|---|
| Model | PC-444 |
| Display UPPER | UPPER:- 4 Digit 7 seg 0.56”,red LED |
| Display LOWER | LOWER:- 4 Digit 7 seg 0.33”,green LED |
| Size (mm) | 48 (H) x 48 (W) x 70 (D) |
| Panel Cutout (mm) | 45 (H) x 45 (W) |
| Input | NPN/PNP Proximity & Micro Switch |
| Output | 1 relay 2 C/O contact |
| Power Supply | 100 to 270V AC, 50 / 60 Hz, Approx 4VA |
| Memory Selectable | Yes/No |
| Reset | Front Reset Key |
| Protection Level | IP-65 (Front side) as per IS/IEC 60529:2001 |
| Operating Temperature | 0°C to 55°C |
